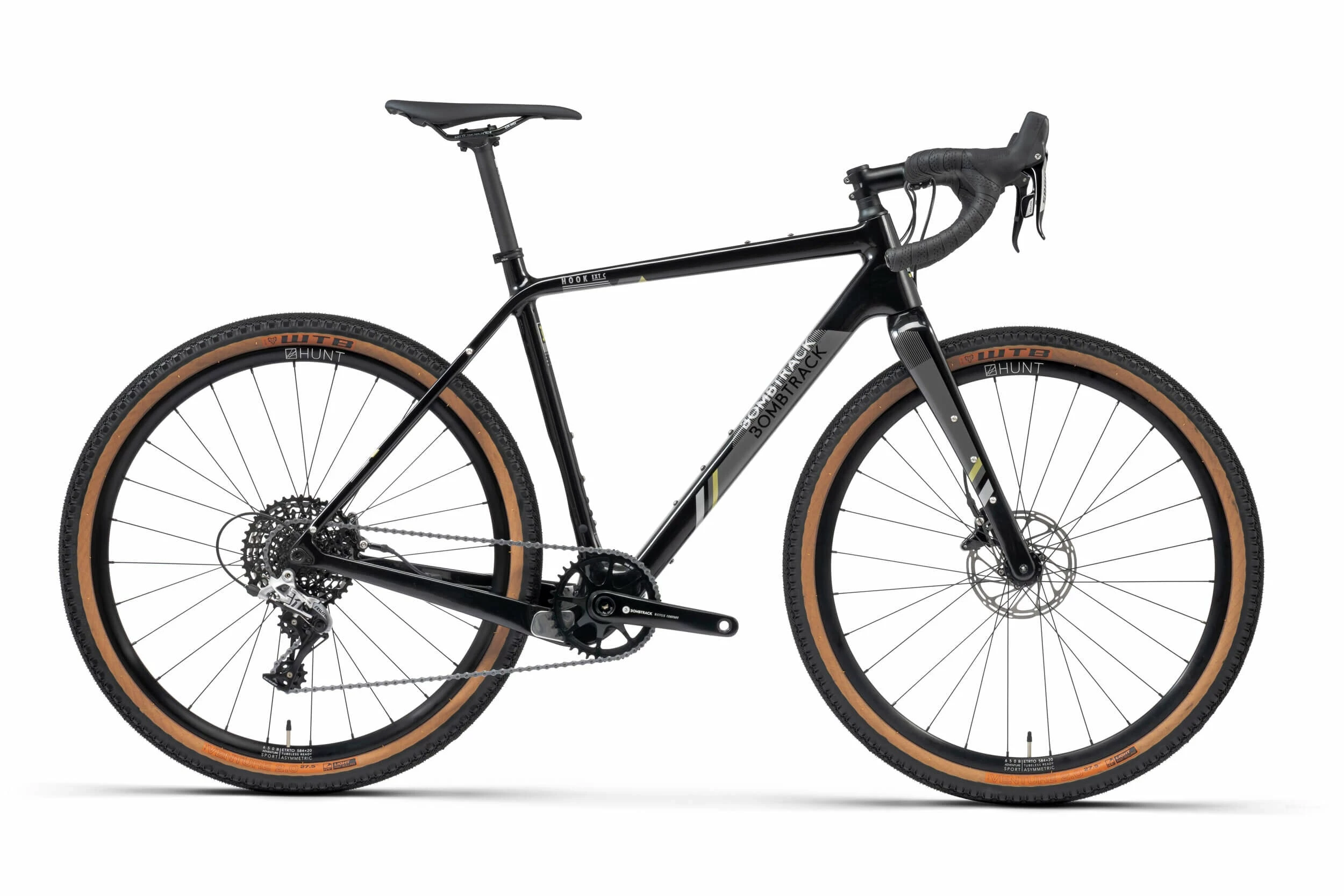

Gravel Bike Carbone Bombtrack Hook EXT C 27,5″ Glossy Metallic Black 2022

Caractéristiques

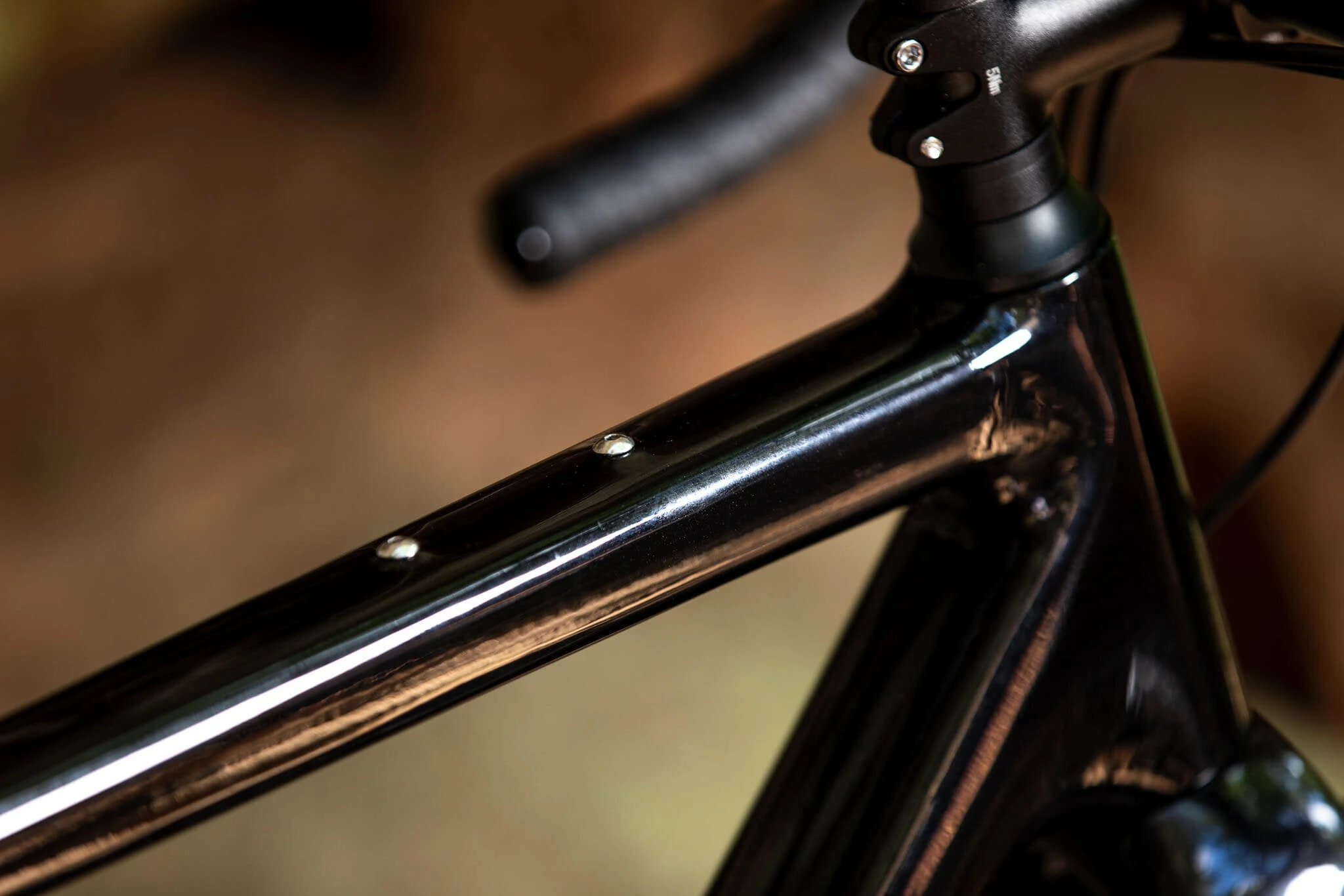

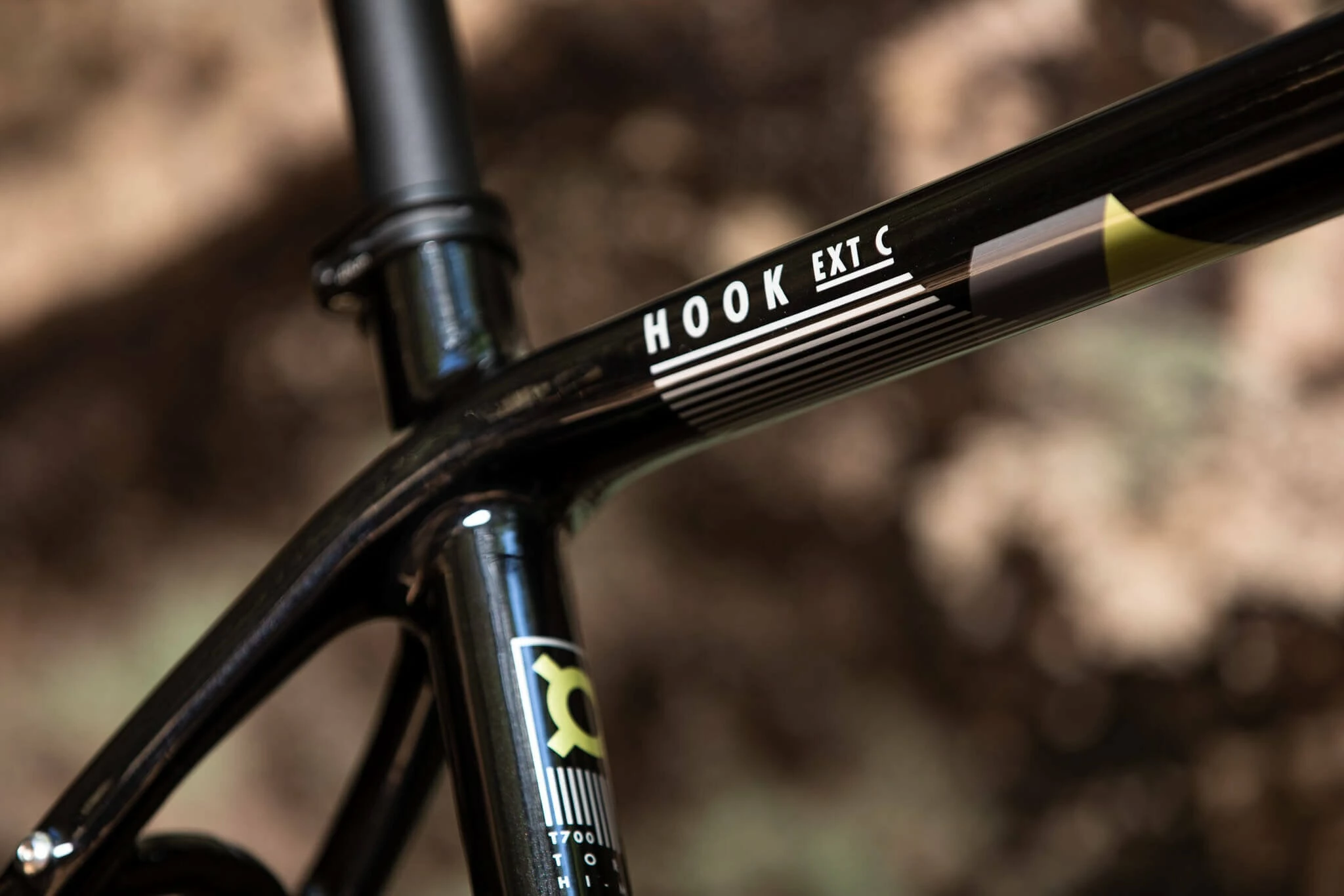

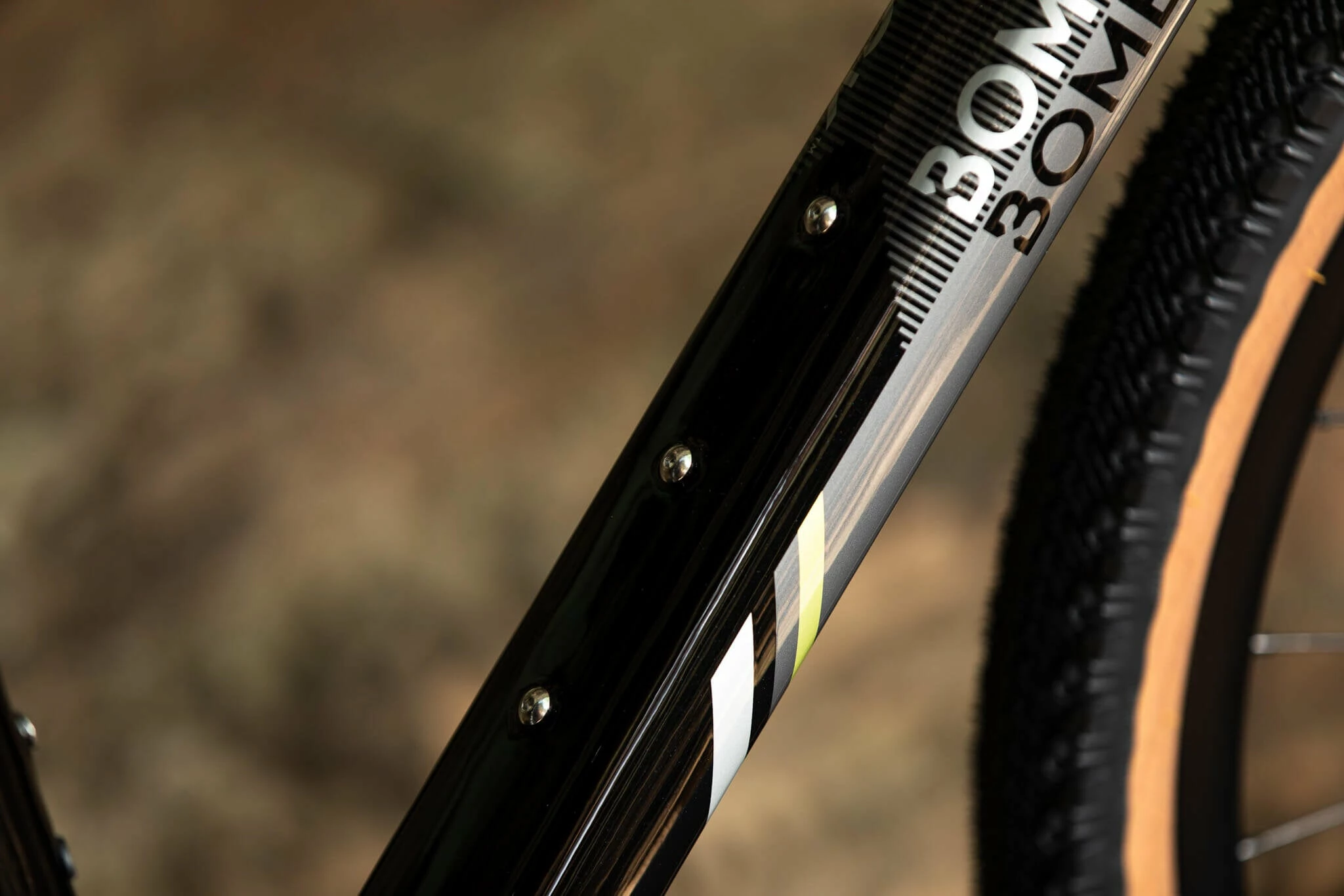

Cadre : Carbone : Toray T700/T800 Hi-Mod carbon, TA, rack / fender mounts, 68 mm T47 BB shell, 650b x 52c / 700c x 45c Frame Max Tire Clearance (w/o fender)

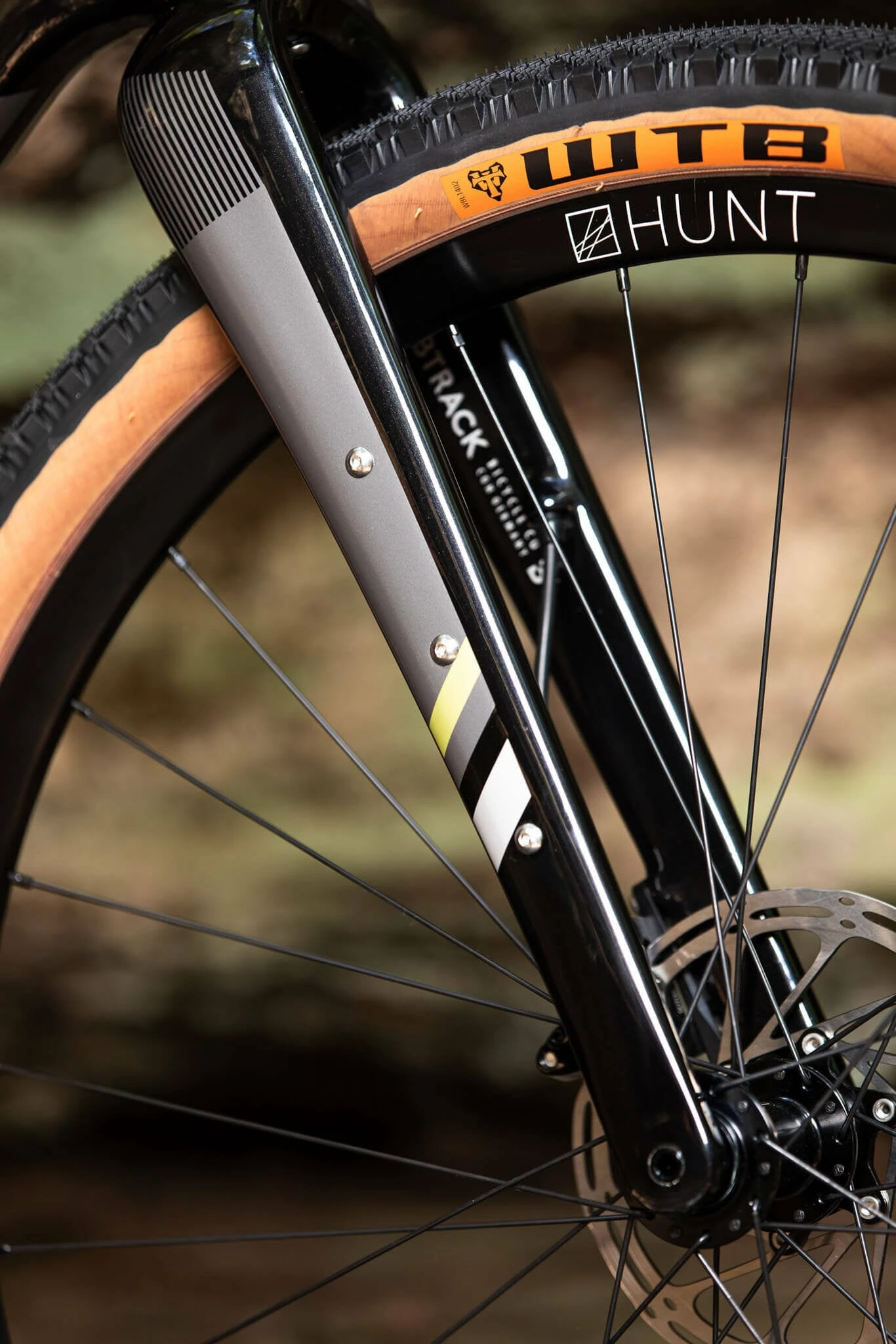

Fourche : full carbon, TA, 1.1/2 » – 1.1/8 », fender / triple cage mounts, internal hub dynamo cable routing

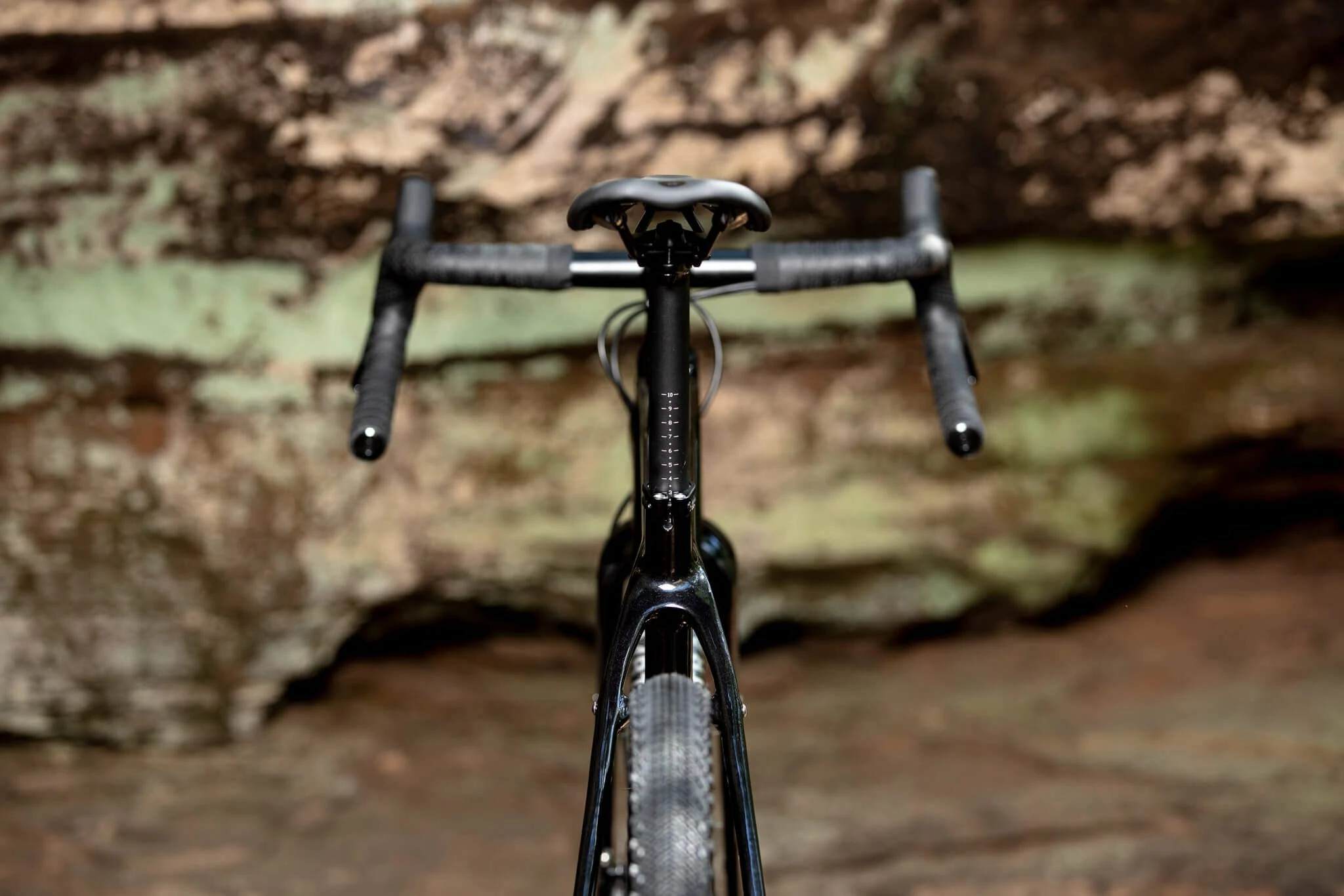

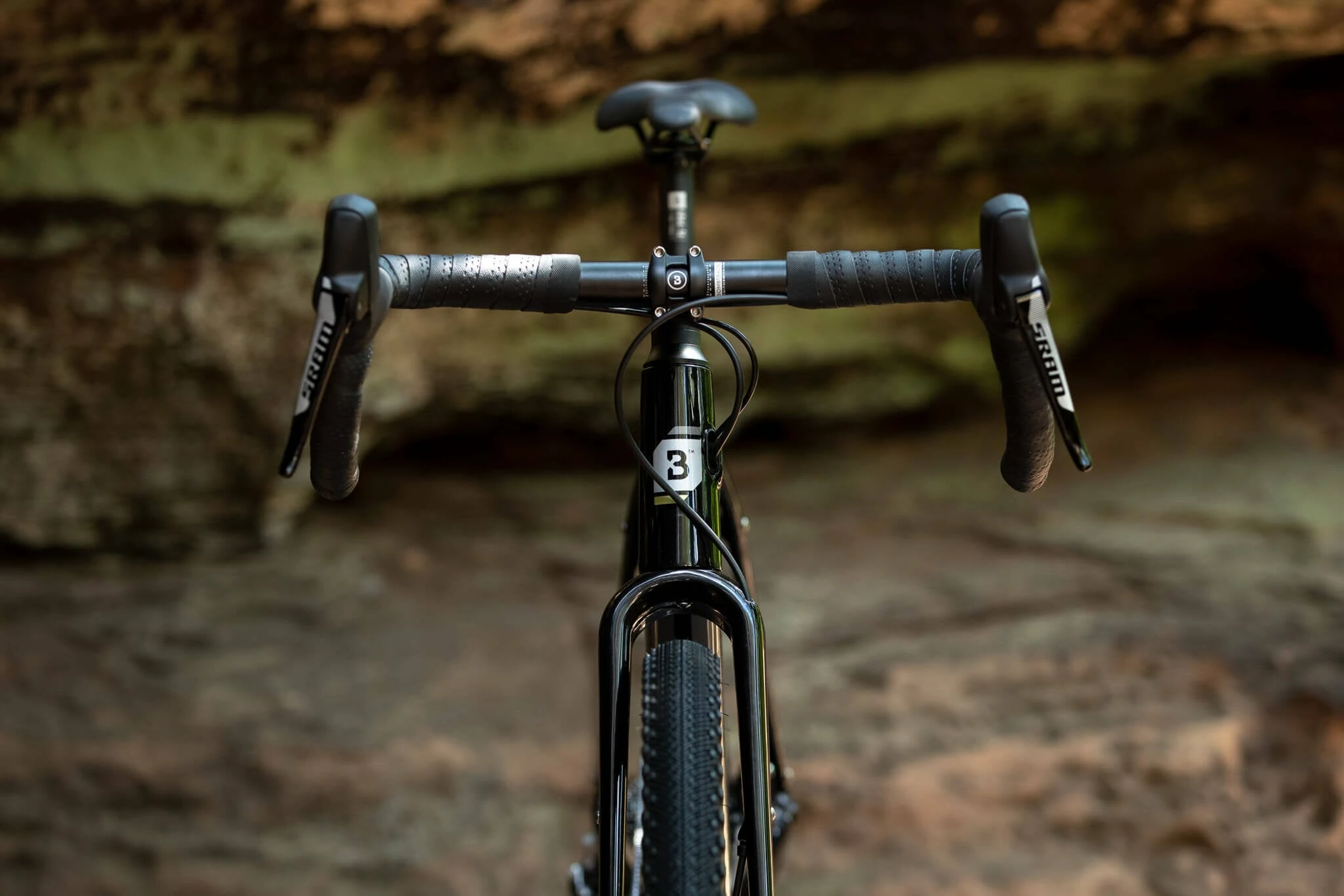

Cintre : BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare
Potence BOMBTRACK ROAM forged aluminium stem, -7°
Jeu de direction Sealed external aheadset, 1.1/2 » – 1.1/8 »
Leviers SRAM RIVAL 1 double tap hydraulic 1×11
Freins SRAM RIVAL flat mount hydraulic disc brakes with 160 rotors

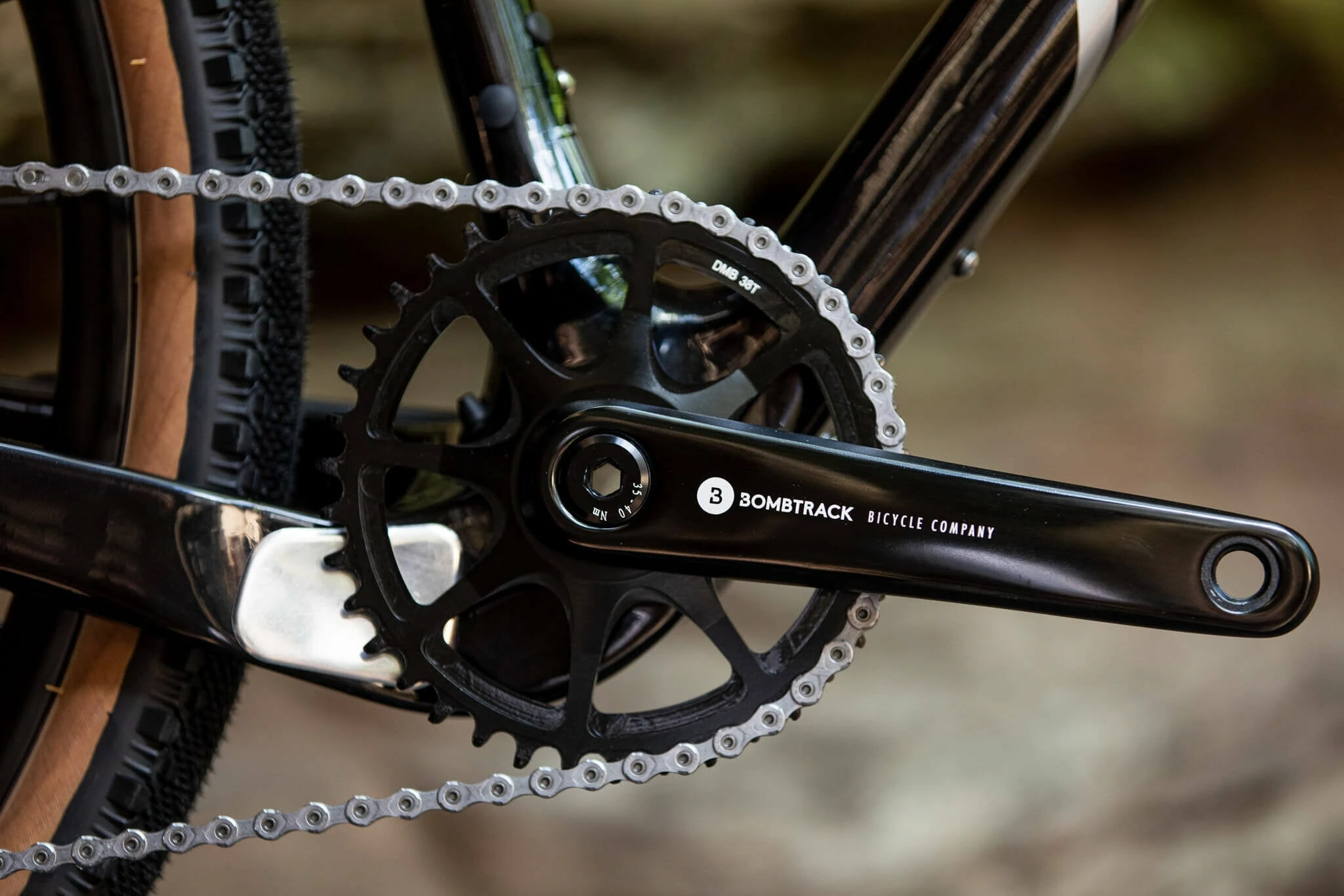

Pédalier BOMBTRACK LYER forged aluminium crank, direct mount interface (SRAM compatible), 30 mm spindle
Boitier BOMBTRACK T47 external sealed BB for 30 mm spindle

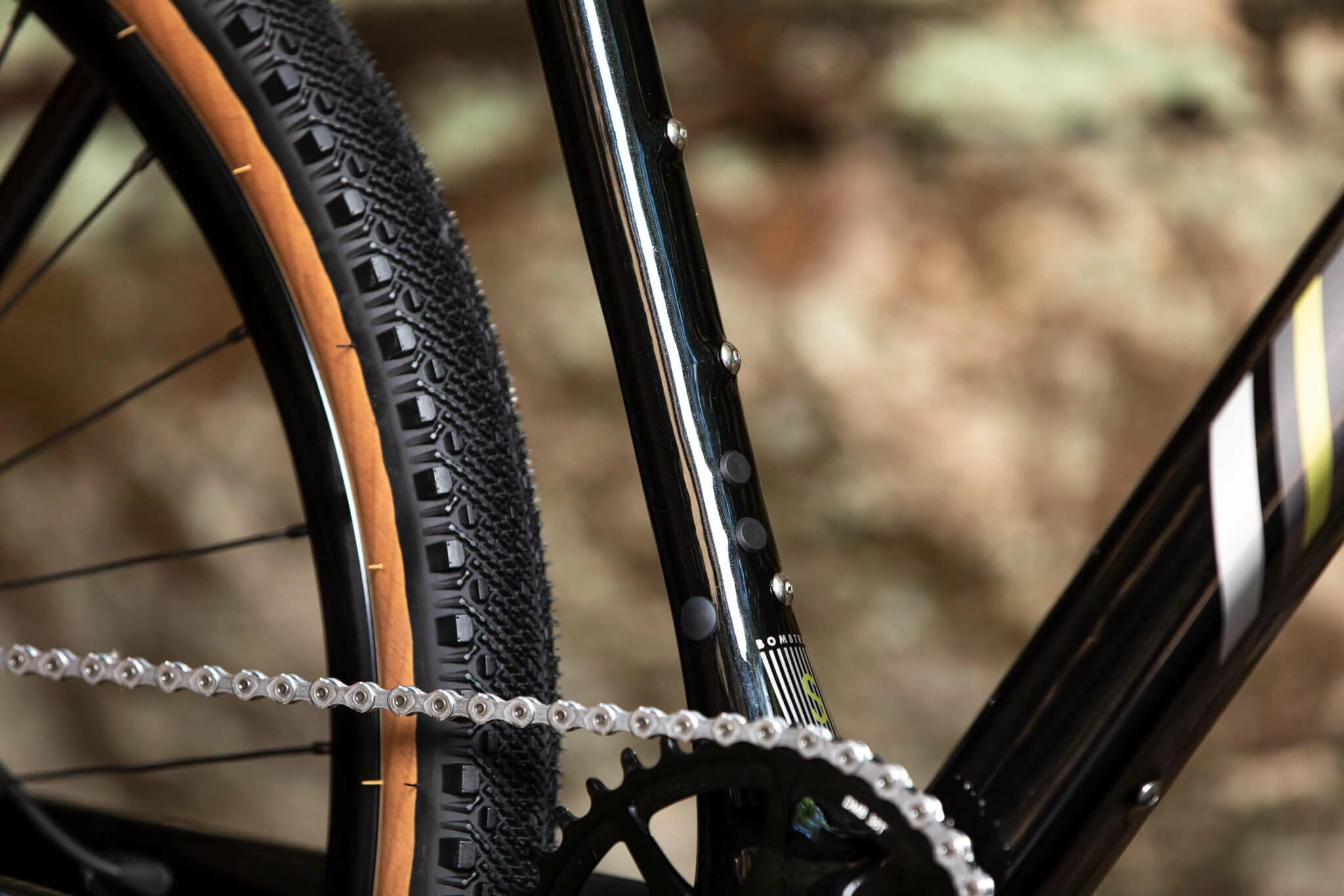

Chaine KMC X11 EPT Anti Rust chain, 1/2 » x 11/128 », 114L
Plateau CNC machined aluminium, narrow-wide, 38 T
Cassette SRAM XG-1150 11-speed, 10 – 42 T
Dérailleur arrière SRAM RIVAL 1, clutch, long cage
Moyeux av HUNT ADVENTURE SPORT sealed hub, centerlock disc
Moyeux ar HUNT ADVENTURE SPORT sealed hub, centerlock disc, XD cassette body
Jante av HUNT ADVENTURE SPORT double wall asymmetric rim, TLC, i20, 28h
Jante ar HUNT ADVENTURE SPORT double wall asymmetric rim, TLC, i20, 28h
Pneus WTB VENTURE TCS LIGHT 27.5 » x 2.0 », tubeless ready
Selle BOMBTRACK DART saddle
Tige de selle BOMBTRACK YEW  27.2 mm x 300 mm
Collier de selle BOMBTRACK ORIGIN forged aluminium seat clamp, 29.8 mm
Poids : 9.4 kg
Poids du kit cadre
1260 g frame (size M, incl. TA, hanger)
600 g fork (300 mm steerer, incl. TA)
Charge maximale : 105 kg avec les bagages

Spécificités

BB Standard T47 – 68 mm shell width
Headset Standard (S.H.I.S.) IS42 / 28.6 | IS52 / 40
Headset crown race angle : 36°
Fork Max Tire Clearance w/o fender 650B x 52C / 700C x 45C
Frame Max Tire Clearance w/o fender 650B x 52C / 700C x 45C
Maximum chainring clearance 1x 46 T with 45 mm chainline
Maximum chainring clearance 2x 50 / 34 T with 43.5 mm chainline
Seat Post Diameter 27.2 mm
Seat clamp diameter 29.8 mm
Front derailleur clamp diameter : 28,6 mm
Brake mount front FM
Brake mount rear FM
Maximum rotor clearance front 160 mm
Maximum rotor clearance rear 160 mm
Front through axle 12 mm x 100 mm, 1.5 pith
Rear through axle 12 mm x 142 mm,  1.5 pitch
ISO testing standard Road
Crankarm XS 165 mm / S – M 170 mm / L – XL 175 mm
Q Factor 152 mm
BCD crank direct mount (Sram compatible)
Chainline 45 mm
Spoke length front wheel 260/264 mm
Spoke length rear wheel 260/262 mm
Spoke count (front / rear) 32/32

Derailleur hanger BT-DH-013
Frame small parts BT-CR-014 / BT-CR-015
Crankarm bolt BT-CRP-002
TA Front BT-TA-F-601
TA Rear BT-TA-R-603
